Gabion Mattresses, or Reno mattresses, are gabion type structures manufactured from 60 x 80 80*100 double twist mesh with more planar area and relatively small in thickness.
Gabion Mattress Description
Gabion Mattresses, or Reno mattresses, are gabion type structures manufactured from 60 x 80 80*100 double twist mesh with more planar area and relatively small in thickness. The blending of Reno Mattress structures into the environment is rapid and pleasing. The voids in the rock fill become progressively filled with silt, promoting vegetation growth which is essential to the preservation and maintenance of the ecological balance of the surrounding environment.
Gabion Mattresses are used for river bank and scour protection, channel linings for erosion control, and embankment stability. They are filled with rock at the project site to form flexible, permeable, monolithic structures to promote rapid growth of natural vegetation. All the physical and mechanical properties of Zhuomao Reno Mattresses meet or exceed the requirements of ASTM A975 .
Gabion Mattresses are designed to provide reliable and long-lasting solutions for erosion control, slope stabilization, and channel protection. Made from high-quality galvanized steel, they ensure exceptional durability and performance in various environments.
Gabion Mattresses, also known as Reno Mattresses, are thinner and broader than standard gabion baskets. They are specifically designed to cover large surface areas, making them ideal for controlling soil erosion and stabilizing slopes. Filled with stones or other materials, they form flexible, permeable, and monolithic structures that adapt to different terrains.
High Flexibility:Adapts to ground movement and settling, making them suitable for unstable terrains.
Durable and Long-Lasting:Manufactured from galvanized steel for superior resistance to corrosion and weathering. Optional PVC coating is available for added protection in harsh environments.
Permeability:Prevents hydrostatic pressure by allowing water to pass through, reducing the risk of structural damage.
Eco-Friendly:Promotes vegetation growth, blending seamlessly with natural landscapes and supporting ecological balance.
Cost-Effective:Lower installation and maintenance costs compared to traditional concrete solutions.
Customizable:Available in various sizes and specifications to suit specific project requirements.
Mesh Sizes(mm) | Gabion Mattress dimensions and volumes | Wire diameter | ||||
L(M) | W(M) | D(M) | Capacity(m³) | Number of diaphragm | ||
60*80 80*100 | 4 | 2 | 0.3 | 2.4 | 3 | Mesh Wire: 2.0mm, 2.2mm2.0/3.0mm, 2.2/3.2mm. selvedge wire: 2.7mm, 3.0mm, 2.7/3.7mm, 3.0/4.0mm. lacing wire: 2.0mm, 2.2mm2.0/3.0mm, 2.2/3.2mm |
6 | 2 | 0.3 | 3.6 | 5 | ||
4 | 2 | 0.23 | 1.84 | 3 | ||
6 | 2 | 0.23 | 2.76 | 5 | ||
2 | 1 | 0.5 | 1 | 1 | ||
3 | 1 | 0.5 | 1.5 | 2 | ||
4 | 1 | 0.5 | 2 | 3 |
Other specifications can also be customized processing.

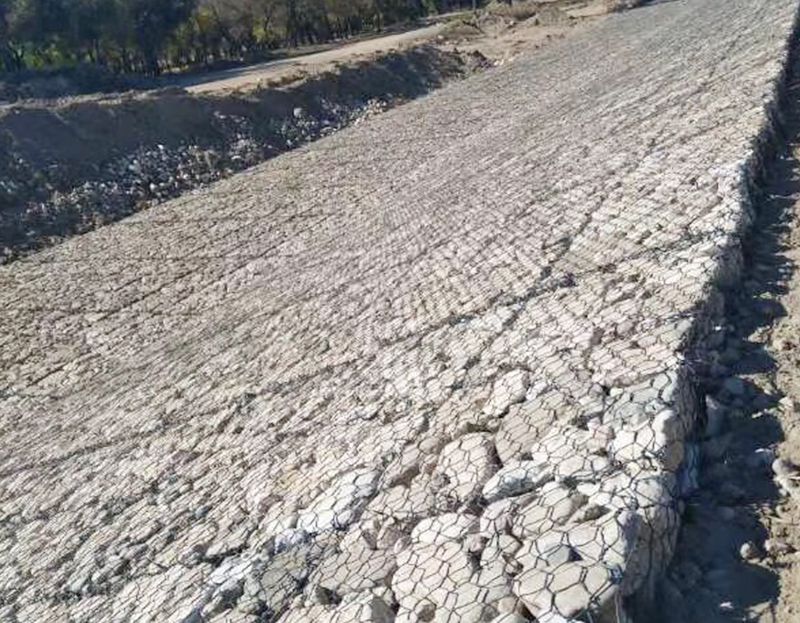

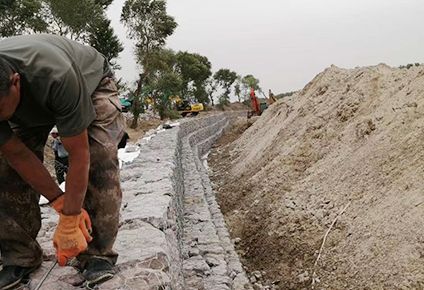

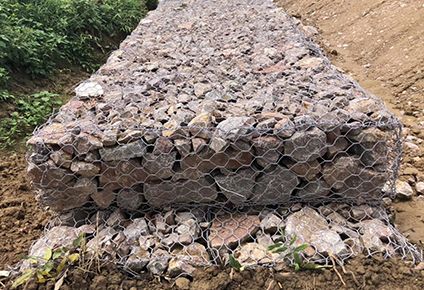

The Gabion Mattress is filled with stones on site to create a flexible, permeable and monolithic structure to be used for river and canal bank protection works.
Complete Solutions for Every Project
Our approach focuses on delivering tailored solutions to meet diverse project needs. We offer:
Customized Design Support
Our engineering team can assist in designing gabion mattress systems that optimize performance for your specific application.
End-to-End Project Management
From manufacturing to logistics, we provide comprehensive support to ensure timely delivery and smooth project execution.
Expert Consultation
Need advice on material selection, installation techniques, or maintenance? Our experts are here to help.
Global Logistics
Efficient shipping solutions to deliver gabion mattresses to any location worldwide.
Gabion Mattress Applications

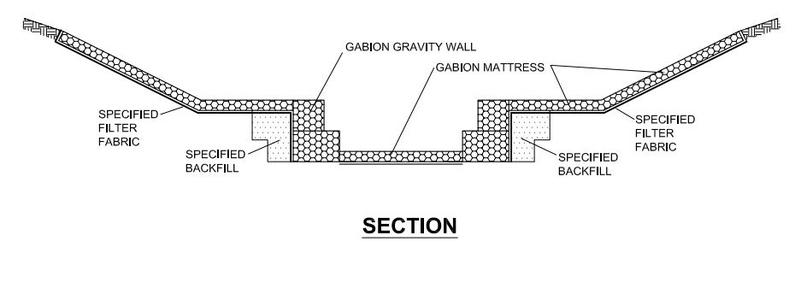

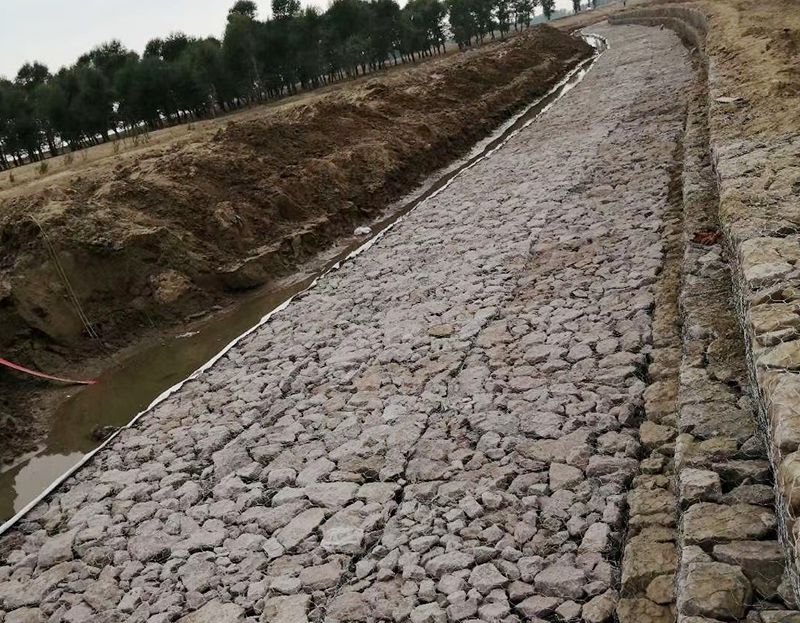

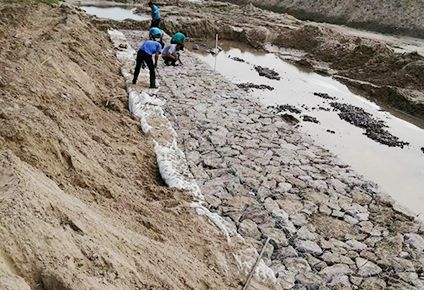

River and Canal Protection
Ideal for protecting riverbanks and canal slopes from water flow erosion.
Retaining Structures for Slopes
Provides stability to natural or engineered slopes in areas with loose soil or high water flow.
Hydraulic Structures
Used in the construction of spillways, weirs, and reservoirs to minimize erosion and water turbulence.
Coastal and Shoreline Defense
Protects beaches, shorelines, and coastal embankments from wave action and high tides.
Road Embankments and Bridges
Secures slopes adjacent to highways, railways, and bridges, ensuring the longevity of infrastructure.
Landscaping and Aesthetic Projects
Often used for creating visually appealing, erosion-resistant terraces and retaining walls in landscaping projects.
